Beam adjustment for LED lenses from Gaggione

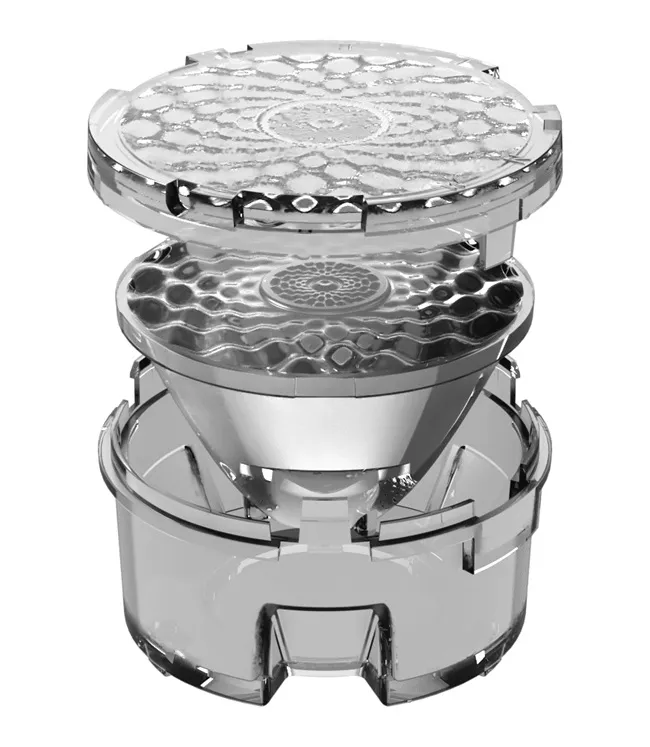

For Sirius, there are two totally different diameter sizes 35 and 50mm (pictured). Their effectivity is claimed to be as much as 89%.

The 35mm variant, KSIRIUS35, has a typical zoom vary (FWHM – Full Width at Half Most) of ~18° to ~48°. And for the 50mm variant, SSIRIUS50Z, the FWHM is ~10° to ~50°.

The LES (Gentle Emitting Floor) the KSIRUS35Z lens is designed to work with is as much as 10mm (it’s optimized for 4-6mm). And the LES for the SSIRIUS50Z is as much as 13mm (optimized for 6-9mm).

When it comes to LED sorts, they help Excessive Energy, Cluster Excessive Energy, Mid Energy, Cluster Chip Scale Bundle, Chip Scale Bundle (CSP), and Chip on Board (COB), specifies Gaggione.

Purposes might retail, architectural, and hospitality lighting.

Beam adjustment

You will discover extra data on the corporate web site.

Final yr, we reported, Gaggione was specializing in narrower beams with two acrylic collimators and a set of radial beam masks.

Picture: Gaggione

See additionally: 50mm acrylic collimators for CoB LEDs
